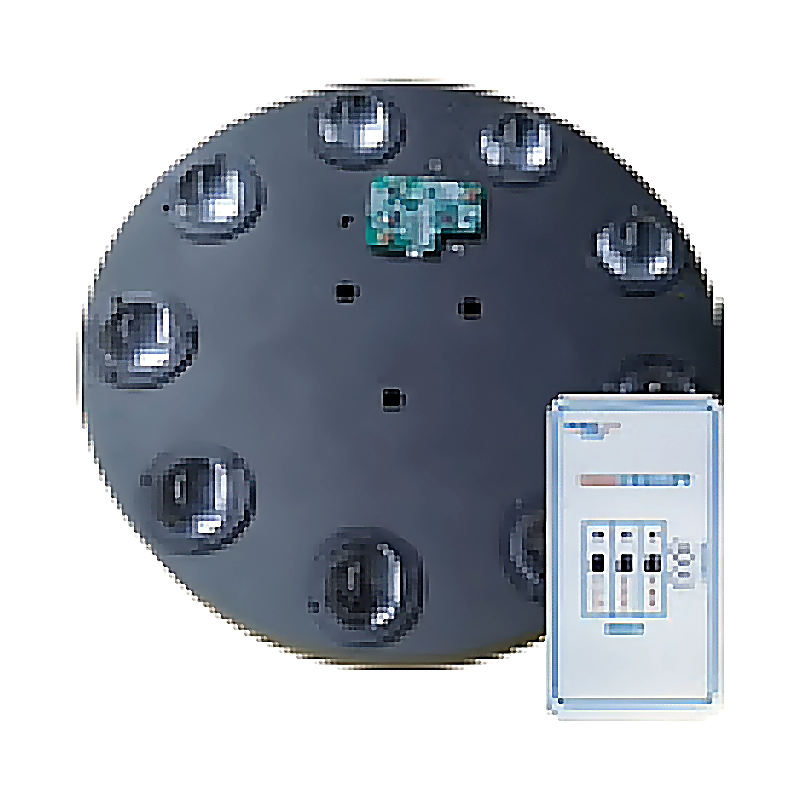

VLight+ Wireless LED Light Panel

The VLight+ wireless LED light panel reproduces the AM 1.5G solar spectrum across the 380-760 nm range with a fitting accuracy of ±15%. Its LED groups can be adjusted independently (three groups, three LEDs each), and wireless control is provided by a dedicated remote controller. It is designed for use together with the PCX-50B/C Discover multi-channel photocatalytic reaction system.

Product Advantages

• Wireless control supported — supplied with a wireless remote controller.
• LED groups are independently adjustable — three groups of three LEDs each.
• Can be used as an optional light panel for the PCX-50B/C Discover multi-channel photocatalytic reaction system.

Applications

▲ Best suited    ● Well suited    ○ Usable

▲ Used with the PCX-50C Discover multi-channel photocatalytic reaction system for photochemical experiments under a simulated solar spectrum.

Specifications

• Maximum electrical power per LED module: 10 W / 18 W
• Output optical power: 130–450 mW/cm² (10 W) / 1.1–2.7 W/cm² (18 W)
• AM 1.5G fitting accuracy: ±15% (380–760 nm)
• Independent LED group control: Yes — three groups of three LEDs each
• Wireless control: Yes — supplied with a wireless remote controller
